Equivalent, replacement, alternative, analog, retrofit, analogue: Pentair Aqualine high flow filter cartridge ALN10-60B, ALN1060B

General Information

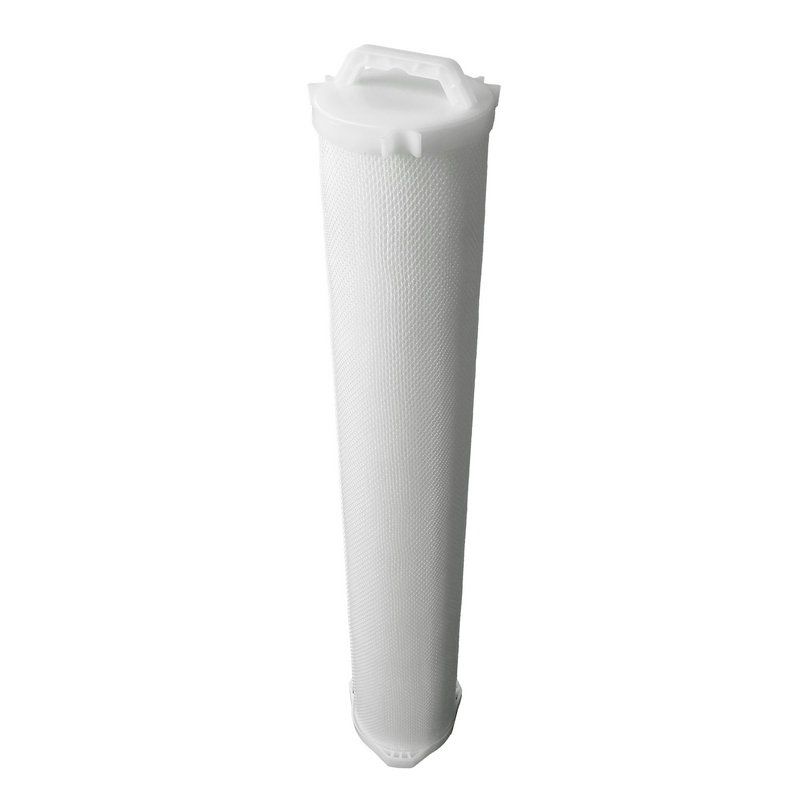

FCTFLPP6010N is manufactured as the direct equivalent, replacement, alternative, analog, retrofit and analogue to replace Pentair Aqualine high flow filter cartridge ALN10-60B (ALN1060B).
FCTFLPP6010N polypropylene pleated high flow filter cartridge is specifically developed to provide higher flow solution for particulate removal in clarification and prefiltration of process, representing a highly-optimized pleated filter technology.

FCTFLPP6010N is a large diameter, single open ended, pleated cartridge with an outside to inside flow direction, allows for maximum filtration area, extending service life for change-out. The high flow by large filtration area reduces the quantity of filter cartridge and the size of housings required.
The polypropylene construction offers broad chemical compatibility. The unique filtration media of polypropylene results in an excellent filtration efficiency, which largely reduces the burden of downstream process for particle removal applications, such as portal water, cooling water, RO systems, oil fields and other industrial fields etc.

Features

  • Micron retention ratings of 10 microns
  • Ergonomically designed handle.
  • High surface area, high flow rates with low pressure drops

Benefits

  • Reduce capital expenditure by fewer cartridges and housings used.
  • Reduce operational expenditure by reduced cartridge change-out frequency, downtime, product waste, labour and disposal costs with longer service life.
  • Ideal choice for a wide variety of process applications.
  • Highly durable polypropylene construction, broad chemical compatibility, suitable for rigorous process conditions.
  • Safe, faster and easier filter change-out.
  • Direct and economical filter cartridge replacement.

Applications

  • Food & Beverage
  • Pharmaceutical
  • Potable water
  • Process water
  • Cooling water for power generation
  • Reverse osmosis pre-filtration
  • Petrochemical and chemicals
  • Industrial condensate water
  • Wastewater reuse
  • Municipal water, etc.

Specifications

Effective Filtration Area (EFA): ≥ 9 m2 (96.9 ft2)

Materials of Construction

Filter media: microfiber polypropylene
Support/Drainage material: polypropylene
Hardware: polypropylene
End cap: Glass fiber reinforced polypropylene
Sealing: Thermal bond
O-ring: Buna-N
Dimensions (nominal)
Outer diameter: 171.5 mm (6.75”)
Lengths: 1,524 mm (60”)
Removal Rating: 10 μm
Purity: free of surfactants, resins, binders and adhesives.

Regulatory Compliance

TaFlow Line series filter cartridges are designed, developed and manufactured in accordance with a Quality Management System approved by an accredited registering body to an ISO 9001 Quality Systems Standard and are shipped with a Certificate of Quality.
All components of TaFlow Line series filter cartridges are Food and Drug Administration (FDA) listed for food contact use in the Code of Federal Regulations (CFR) Title 21 (177.1520 and 177.2600) and conform to the relevant requirements of Regulation (EC) 1935/2004 for their intended food contact applications and USP for the Biological Test for Plastics, Class VI.
For easy traceability and identification, every filter cartridge has a lot number.

Operating Conditions

Recommended change-out differential pressure: 2.4 bar (35 psi) @ 20°C (68°F)
Maximum differential pressure:
5.2 bar (75 psi ) @ 20°C (68°F)
3.4 bar (50 psi) @ 82°C (180°F) for pleated polypropylene
3.4 bar (50 psi) @ 121°C (250°F) for pleated glass fiber
Maximum reverse differential pressure: 2.8 bar (40 psi) @ 20°C (68°F)
Maximum operating temperature: 82°C (180°F)
Recommended maximum recommended water flow rate: up to 1,892 lpm (500 gpm).
Pressure drop on flow rate:

Removal rating (μm)

Element pressure drop (mbar/m3/h)

Element pressure drop (psi/gpm)

10

1.04

0.52

0.35

0.0034

0.0017

0.0011

Unit conversion: 1 mbar = 0.0145 psi

Ordering Guide

Cartridge

Material

Nominal Length

Removal Rating

O-ring Material

FCTFL

PP

=Polypropylene

60

=60"

10

=10 μm

N

 =Buna-N
