Products >> Melt Blown Filter Cartridge >> Nominal Melt Blown Filter Cartridge
PD-25-30 Equivalent
- Product No.:FCTSPP3025PZZZ
Equivalent, replacement, alternative, analog, retrofit, analogue: Pentek Polydepth filter cartridge PD-25-30, PD2530
General Information

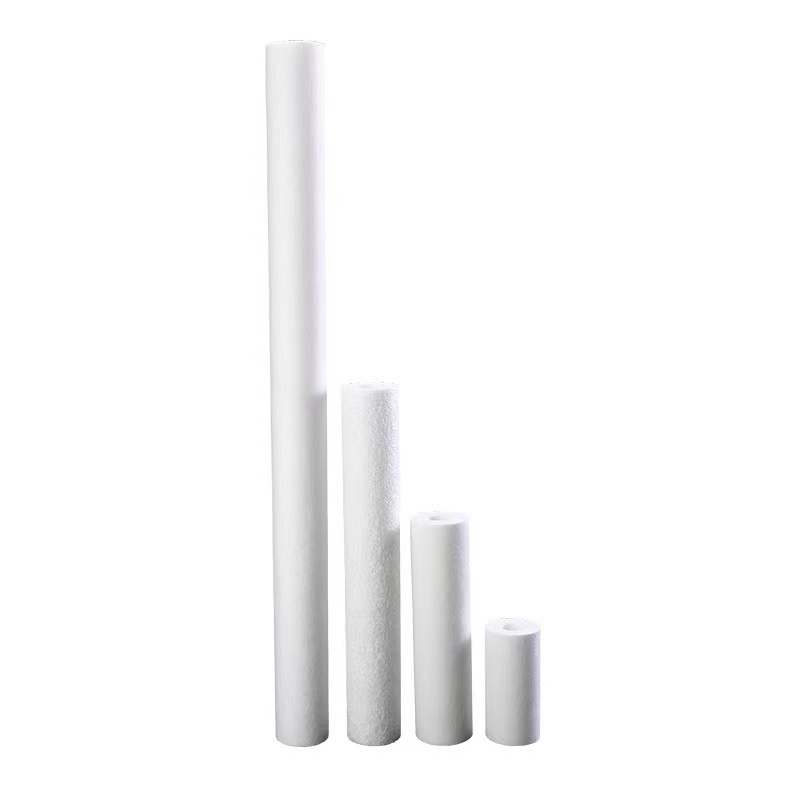

FCTSPP3025PZZZ is manufactured as the direct equivalent, replacement, alternative, analog, retrofit and analogue to replace Pentair Pentek Polydepth filter cartridge PD-25-30 (PD2530).FCTSPP3025PZZZ polypropylene melt blown filter cartridge is specifically developed to provide an economical solution and nominal rating for particulate removal in prefiltration of process and water treatment, representing a highly-optimized melt blown filter technology. The unique filtration media of 100% polypropylene microfibers results in continuous graded, fixed pores which provide pre-filtration and fine filtration in the same cartridge, which ensures efficient use of the entire gradient depth of the filter, resulting in high flow rate and high dirt holding capacity.
FCTSPP3025PZZZ PP melt blown filter cartridge graded-density depth structure provides maximum filtration capacity, enables the capture of more contaminant than conventional cartridges, while the rigid support fibers hold the filtration fibers firmly in place, resulting in less potential for contaminant unloading and more efficient filtration under a variety of operating conditions. TaSpun series PP melt blown filter cartridge reduces the burden of downstream process for particle removal applications in liquids.
Features
- Thermally bonded all-polypropylene construction without glue and adhesives
- Highly consistent
- High flow rates with low pressure drops
- Wide micron retention ratings from 0.5 to 250 μm
- Various configuration in lengths and adaptors
Benefits
- Low extractables levels ensure the purity of the filtrate
- Broad chemical compatibility for various applications
- Direct and economical replacement for existing plants
Applications
- Drinking water treatment
- Industrial water treatment
- Seawater desalination
- Bottled water and mineral water
- Food & beverage
- Pharmaceutical
- Bulk chemicals
- RO system
- Cooling water
- Process water and waste water
- Plating
- Oil & gas
- Water injection
- Environmental etc.
Specifications
Materials of Construction
Filter media: 100% microfiber polypropylene
Core: Polypropylene (optional)
Adaptor: Polypropylene (optional)
Gasket/O-ring: Silicone, EPDM (ethylene propylene), NBR (nitrile), Viton (fluorocarbon elastomer)
Dimensions (nominal)
Outer diameter: 6.3 cm (2.5”)
Inner diameter: 2.8 cm (1.1”)
Lengths: 24.8 cm (9.75"), 25.4 cm (10"), 49.5 cm (19.5"), 50.8 cm (20"), 74.3 cm (29.25"), 76.2 cm (30"), 99.1 cm (39"), 102 cm (40"), 127 cm (50”), 152.4 cm (60”)
Removal Rating: 0.5 to 250 μm
Purity: free of surfactants, resins, binders and adhesives.
Regulatory compliance
TaSpun series filter cartridges are designed, developed and manufactured in accordance with a Quality Management System approved by an accredited registering body to an ISO 9001 Quality Systems Standard and are shipped with a Certificate of Quality.
All components of TaSpun series filter cartridges are Food and Drug Administration (FDA) listed for food contact use in the Code of Federal Regulations (CFR) Title 21 (177.1520 and 177.2600) and conform to the relevant requirements of Regulation (EC) 1935/2004 for their intended food contact applications and USP for the Biological Test for Plastics, Class VI.
For easy traceability and identification, every filter cartridge is marked with an identifying lot number.
Operating Conditions
Recommended change-out differential pressure: 2 bar (30 psi)
Maximum differential pressure without core:
4.1 bar (60 psi) @ 30°C (70°F)
3.4 bar (50 psi) @ 50°C (122°F)
2 bar (30 psi) @ 70°C (158°F)
1 bar (15 psi) @ 82°C (180°F)
Maximum operating temperature: 82 °C (180°F)
Flow rate:
Flow rate is for a 10” (25.4 cm) cartridge with water at 20°C (68°F). For liquids other than water, multiply differential pressure by fluid viscosity (cP).
Unit conversion: 1 bar = 14.5 psi
Ordering Guide
Cartridge |
Material |
Nominal Length |
Removal Rating |
Core |
Adaptor* |
Gasket/O-ring Material |
Surface |
|||||||||
FCTS |
PP |
=PP |
5 |
=5” |
05 |
=0.5 μm |
40 |
=40 μm |
Z |
=None |
Z |
=None |
Z |
=None |
Z |
=Plain |
|
|
|
9 |
=9.75" |
08 |
=0.8 μm |
50 |
=50 μm |
P |
=PP core |
0 |
=DOE |
S |
=Silicone |
C |
=Coarse |
|
|
|
10 |
=10" |
1 |
=1 μm |
70 |
=70 μm |
|
|
2 |
=226 O-rings with 2 locking tabs, flat end |
E |
=EPDM |
E |
=Embossed |
|
|
|
19 |
=19.5" |
3 |
=3 μm |
90 |
=90 μm |
|
|
|
N |
=Nitrile |
G |
=Grooved |
|
|
|
|
20 |
=20" |
5 |
=5 μm |
100 |
=100 μm |
|
|
|
V |
=Fluorocarbon elastomer |
|
|
|
|
|
|
29 |
=29.25" |
10 |
=10 μm |
125 |
=125 μm |
|
|
3 |
=222 O-rings, flat end |
|
|
|
|
|
|
|
30 |
=30" |
20 |
=20 μm |
150 |
=150 μm |
|
|
|
|
|
|
|
|
|
|
|
39 |
=39" |
25 |
=25 μm |
200 |
=200 μm |
|
|
7 |
=226 O-rings with 2 locking tabs, fin end |
|
|
|
|
|
|
|
40 |
=40" |
30 |
=30 μm |
250 |
=250 μm |
|
|
|
|
|
|
|
|
|
|
|
50 |
=50" |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
60 |
=60” |
|
|
|
|
|
|
8 |
=222 O-rings, fin end |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
S |
=SOE, spring end |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Example model: FCTSPP3025PZZZ refers to TaSpun PP melt blown filter cartridge, 30", 25 μm, PP core, no adaptors.
* For more options on adaptor, please refer to Adaptor Guide from Tanal.
